Related List Condition Helper

Build RLQUERY filter conditions visually using the Related List Condition Helper, a Pro feature for constructing related list queries on ServiceNow lists and forms.

Last updated: April 1, 2026

The Related List Condition Helper lets you build RLQUERY filter conditions visually — no more hand-crafting encoded query strings. It discovers all reference relationships for a table, auto-detects many-to-many junction tables, and generates the correct RLQUERY syntax ready to apply or copy.

Opening the Helper

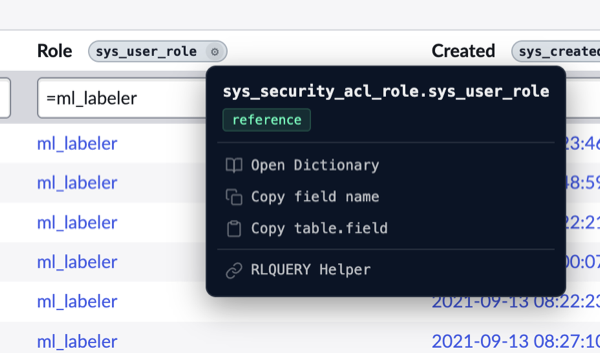

The helper is available from the Technical Names popover on both forms and lists. When Technical Names is enabled (/tn), click the cog icon on any field label pill to open the popover, then select Related List Condition Helper.

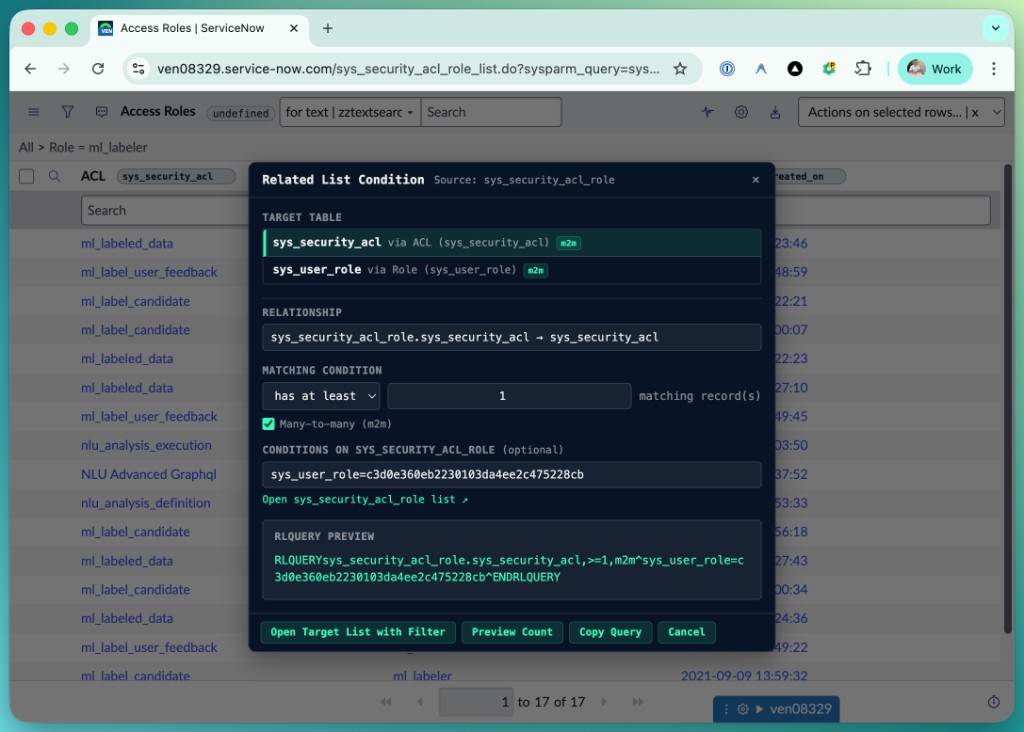

This opens the full helper modal where you can select a target table, configure conditions, and preview the generated RLQUERY:

How It Works

When you open the helper, it:

Resolves the source table hierarchy — Walks the inheritance chain using PAUtils().getTableAncestors() to discover all reference fields, including inherited ones
Discovers reference targets — Queries sys_dictionary for all reference fields and sys_m2m for many-to-many definitions
Auto-detects M2M relationships — If the source table is a junction table (defined in sys_m2m or has exactly two reference fields), the M2M checkbox is pre-checked
Pre-fills context — When opened from a specific field, the helper pre-selects the appropriate target and includes the current field value in the conditions

Building a Query

Target Table

The top section lists all tables that the source table references. Each entry shows the target table name, the reference field used, and an m2m badge if the relationship is many-to-many.

Click a target to select it. If there are more than five targets, a search filter appears.

Matching Condition

Choose the count operator:

Operator	RLQUERY Output	Meaning
has at least	`>=1`	Target list has 1 or more matching records
has no	`=0`	Target list has zero matching records
has exactly	`=N`	Target list has exactly N matching records
has at most	`<=N`	Target list has at most N matching records

Many-to-Many (M2M)

Check this box when the source table is a junction table (e.g., sys_security_acl_role linking ACLs to roles). The helper auto-detects this when possible.

Conditions

Optionally add encoded query conditions on the source table. When opened from a form field, the current field value is pre-filled. When opened from a list, the active list filter is included.

RLQUERY Preview

The preview section shows the generated RLQUERY string in real-time as you adjust settings. For example:

RLQUERYsys_security_acl_role.sys_security_acl,>=1,m2m^sys_user_role=260c203a870033000e56d61e36cb0bbc^ENDRLQUERY

Actions

Button	Action
Open Target List with Filter	Opens the target table list in a new tab with the RLQUERY applied as a filter
Preview Count	Runs a Stats API call to count how many records on the target table match the RLQUERY
Copy Query	Copies the RLQUERY string to the clipboard for use in scripts, condition builders, or URL parameters
Cancel	Closes the helper

Use Cases

ACL Debugging — Find all ACLs that reference a specific role, or all roles assigned to a specific ACL
M2M Exploration — Navigate many-to-many relationships that are hard to query with standard list filters
Dynamic Filtering — Build RLQUERY conditions for reports, dashboards, or scripted conditions
Reference Validation — Quickly check how many records reference a particular record
Scripting Optimization — Use the generated encoded query in GlideRecord scripts to filter by related list conditions in a single query, avoiding extra or nested GlideRecord lookups

Tips

The helper works on any table — open it from list column headers or form field labels
Use Preview Count before opening the target list to verify your query returns the expected number of records
The conditions field supports full encoded query syntax — you can paste complex filters
Press Escape to close the helper at any time

List Enhancements — Technical Names and other list features
Form Enhancements — Technical Names and popover features on forms
Related Lists (Sidekick) — Discover all related lists for a record
